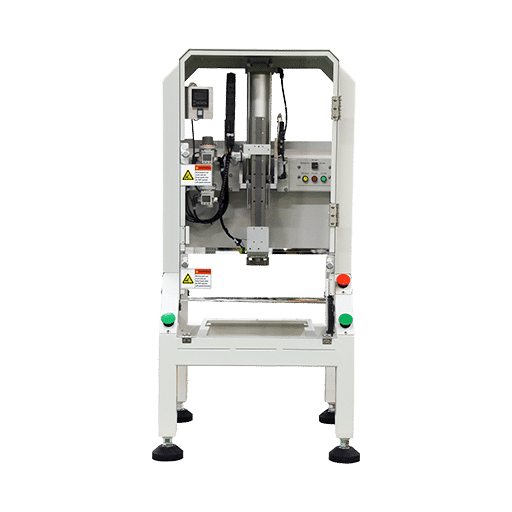

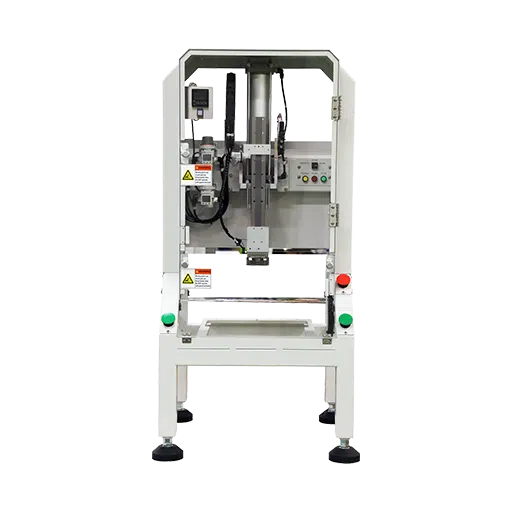

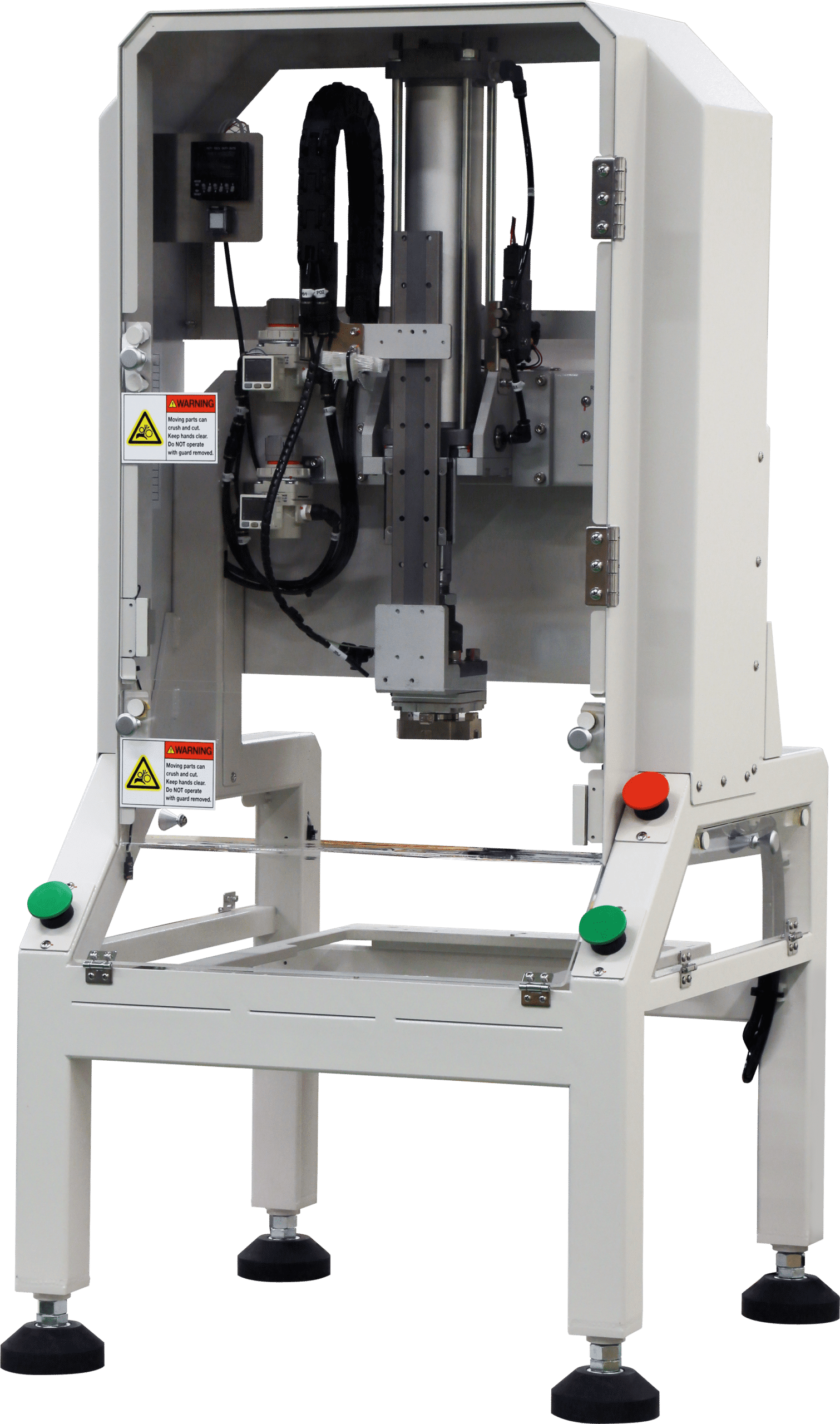

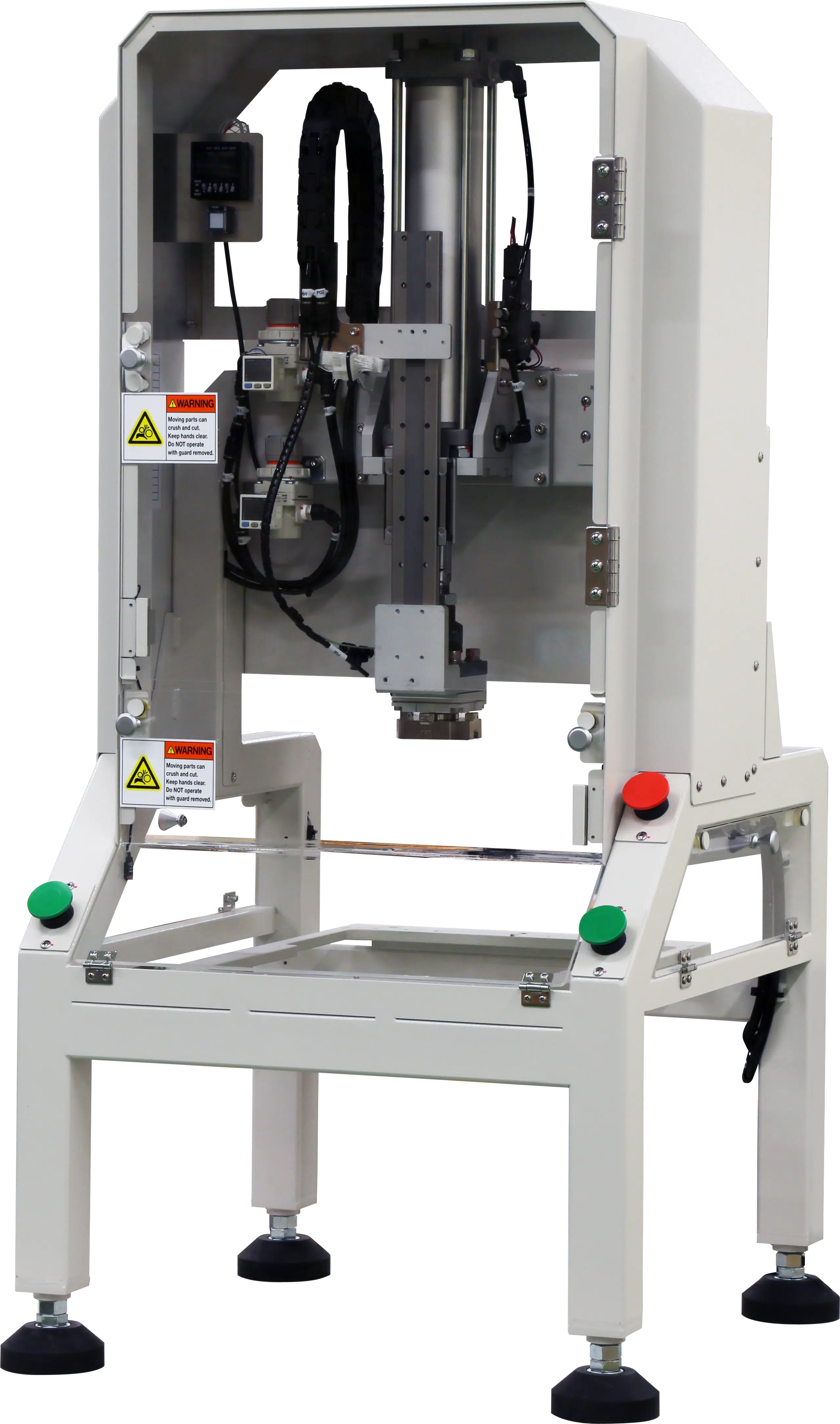

Chroma 3210 (Handler)
SLT Handler – R&D development of your devices
Applications
A scalable platform to support the development of your devices
The Chroma 3210 is a single-site handler designed for product development, technical validation, and pre-industrialization phases. Built around the requirements of modern System Level Test (SLT) applications, it enables R&D teams and test centers to quickly qualify new generations of devices before moving into production.
Its compatibility with a wide range of packages—from miniature devices to large advanced packages—makes it particularly well suited to high value-added markets such as artificial intelligence (AI), high-performance computing (HPC), and automotive semiconductors.
Thanks to its modular design and compatibility with Chroma production platforms, the 3210 supports ramp-up to production volumes while limiting requalification efforts. This approach maintains consistency between development phases and future manufacturing lines.
Spécifications
Technical capabilities tailored to next-generation devices
The Chroma 3210 is designed to meet the mechanical, thermal, and electrical constraints of the most demanding integrated circuits.
Key features:
- Designed for System Level Test (SLT) applications
- Ideal for device design and technical validation
- Supported device sizes from 2 × 2 mm to 120 × 120 mm
- Compatible with BGA, µBGA, QFP, QFN, Flip-Chip, TSOP and similar packages
- Single-head or dual-head configuration depending on productivity needs
- Contact force up to 450 kgf in single-head version
- Up to 150 kgf per site in dual-head configuration
- Device thicknesses from 0.5 to 7.5 mm
- Ball or lead pitch from 0.4 / 0.5 mm
- Compact footprint for easy installation in laboratories and qualification centers
For applications requiring advanced thermal control, the system can be configured in a Tri-Temp version, covering a range from -40°C to +150°C, with high thermal accuracy to ensure measurement repeatability.
Démonstration / location
A configurable solution tailored to test requirements
One of the key strengths of the Chroma 3210 is its ability to scale with project requirements and the characteristics of the devices to be tested.
Increased test throughput
A dual test-head option enables higher device throughput while limiting floor space, delivering better ROI on test resources.
High-power device handling
For applications requiring significant heat dissipation, Chroma offers several thermal control architectures capable of supporting devices up to 500 W dissipation. This capability is particularly suited to AI processors, HPC accelerators, and advanced power devices.
Advanced thermal testing
Depending on application needs, the system can be equipped with:
a Tri-Temp thermal engine from -40°C to +150°C
an HPPTC solution dedicated to high-dissipation devices
a liquid-immersion test system for the most thermally demanding applications
Protection and contact quality
A dual contact-force option is available for specific applications, including bare die or packages requiring high contact forces. This configuration helps ensure electrical contact quality while protecting the test interfaces.
The Chroma 3210 is therefore an ideal solution for manufacturers and development centers seeking a flexible handler that can support projects from validation through production readiness, while meeting the challenges of next-generation electronic devices.
