Fully Automatic Pick & Place (Die Bonder)
AMADYNE, EMU, CAT, FAB 1 & 2 -
Browse the products in the range
Presentation

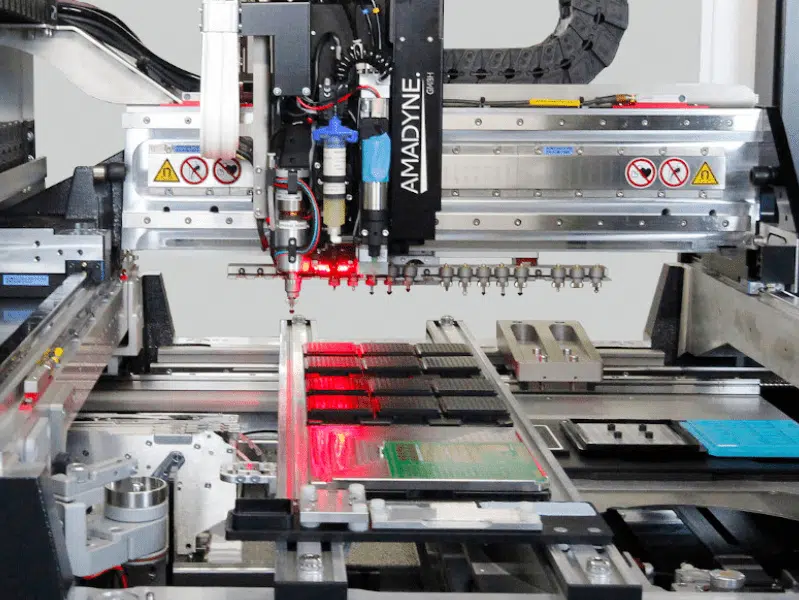

AMADYNE :
excels in the field of fully automatic chip transfer. Combining reliability and speed, they have managed to maintain the flexibility and accessibility needed to adapt to different sectors of activity;
The product portfolio reflects this result.
EMEU :
It is small but nice. It can do everything its big sisters can do and is a proud all-rounder despite its size and compactness. Perfect for small series, prototyping and inspection up to 250 cph.
CAT AP :
the mid-range solution. Compact. More precise. Surprisingly fast. The CAT AP is a perfect small automation system. Thanks to short set-up times, it is perfect for small series with frequent product changes up to 700 cph.

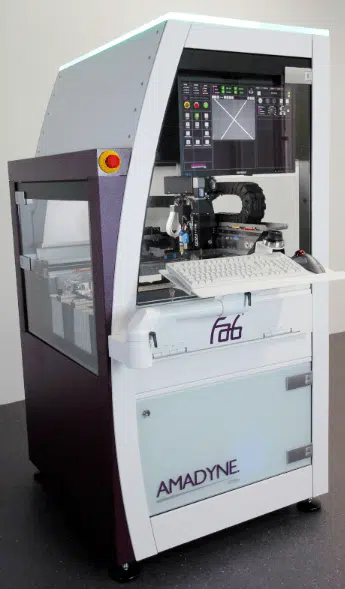

FAB 1 & 2 :
The high-end solution. Even faster. Even more precise. With more interior space and inline compatible. The flexible and robust automation solution. Perfect for demanding processes and complex MCMs in series production up to 1100 cph.
Performances
Exceptional versatility, rapid configuration, wide range of choices for a diverse spectrum of micro-scale technological applications.
Precision :
From ±25 μm @ 3 sigma, ± 0.5 ° @ 3 sigma
To ±6 μm @ 3 sigma, ± 0.3 ° @ 3 sigma
Throughput :
From 250 components per hour
To 1100 components per hour
Working Area :
From 300 mm x 350 mm XY
To 500 mm x 430 mm XY
Processes :
MCM, COS, COC, FC, Eutectic, Inspection, die sorting and others
A proximity
Before project launch, a feasibility study is conducted in close collaboration with the client. Together, we configure the machine in detail to perfectly meet their specific needs. This flexible approach allows for customization of both hardware and software, leveraging our capabilities. Thus, we ensure a tailor-made solution, from design to final machine assembly.
Configuring customer products on our machines is child's play. Thanks to our extensive process expertise at AMADYNE, you can be assured that your new machine will be ready for production upon delivery.
Our team provides intensive process and application support, before and after installation, ensuring a seamless transition. And you can count on our first-class service and support throughout the lifetime of your machine.
