Leak Test

Fine and large leak detectors

Parcourir les produits de la gamme

The leak testing equipment that we offer is very easy to use while being very reliable and efficient. They are matched to the industry standard for reliability.

  • Operation by immersion in FluorInert® at 125°C allowing the tightness of the components to be checked with the naked eye (if fine bubbles appear, the component is not waterproof).
  • Distortion-free “open field” viewing.
  • Digital temperature display.
  • Exceeds Mil-Spec light output requirements.
  • Unique “self-contained” filtration system – no need for additional fluid conditioners.
  • Overheating protection.
  • Fluorocarbon Recovery Hood – reduces FC losses far beyond any other system available

Mandatory tests for military and space applications.

Fine leak testers : Mil-spec 1014 raw leak detection.

A family with different leak detectors to meet your specific needs

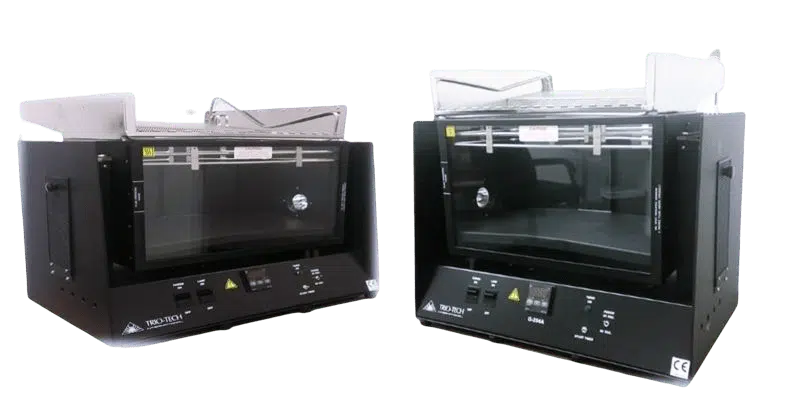

  • G203A System : Dimensions utilies : 7,4 x 20,2 cm
  • G253A System : Useful dimensions: 12 x 55.4 cm
  • G254A System : Useful dimensions: 15 x 35.6 cm

Temperature range: +50°C to 145°C ± 5°C.

Large Leak Tester :
Bubble-Tester G-489 : Pressurized Large Leak Detection System for components and modules, specifically for military and space applications.
(contact us).

Possible options for saving FluorInert® :

  • Filtration system
  • Lids to reduce fluocarbon losses caused by boiling or ventilation. Available for each model.
  • Magnifiers (models adapted to each equipment)
